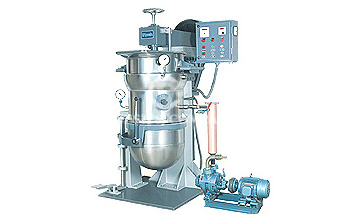

   UNIVERSAL COOKER WITH VACUUM

Click to enlarge

About Machine


The cooker is suitable for production of hard boiled candy, toffee and caramel varieties. Batch cooker comprises of two main parts, upper one is the stainless steel pan with steam jacket for cooking and lower one is the tilting pan of copper or stainless steel for moisture removal.

Raw material is loaded through manhole at upper vessel and cooked by steam, which passes through jacket at 8 to 10 bar pressure. The cooked mass will be discharged in lower pan. Vacuumised lower vessel removes the moisture contents. The mass is discharged on cooling plate by rotating and tilting system of the lower vessel.


Machine Specification


Capacity

45 Kgs. / BATCH

60 Kgs. / BATCH

90 Kgs. / BATCH

Motor Rating

1.5 HP

1.5 HP

2 HP

Vacuum Pump Rating

3.75 kW / 5 HP

3.75 kW / 5 HP

5.53 kW / 7.5 HP

Stirrer Speed

70 TO 100 RPM

70 TO 100 RPM

70 TO 100 RPM

Weight (approx)

700 Kgs.

850 Kgs.

1100 Kgs.

Dimensions (LxWxH) (approx)

1500 x 1500 x 2100 mm

1500 x 1500 x 2100 mm

1800 x 1550 x 2300 mm
