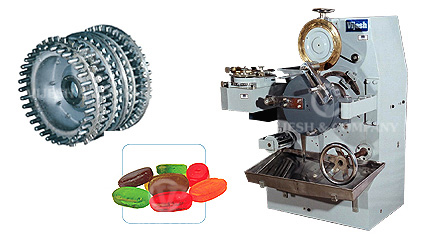

   TABLET FORMING MACHINE ( PLAST O PLAST )

Click to enlarge

About Machine


The machine mainly consist one set of sizing wheels & tablet forming die. The rope from rope sizer machine enters in this sizing wheel and then into the tablet forming die to get the required shape of Candy as per die. to get required shape of Candy as per die. It is suitable for forming seamless sweets with high depth and thickness. The new version of Tablet Forming Machine (Plast-o-Plast) is designed with spring type die with bigger & robust punches.


Machine Specification

Capacity 2500 kgs. / 8hrs. Shift
Motors Rating 1.5 kW / 3 HP
Weight 600 kgs.
Dimensions ( L x W x H) (approx) 900 x 850 x 1300 mm

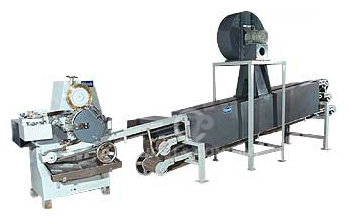

   TABLET FORMING MACHINE WITH THREE STAGE COOLING CONVEYOR
