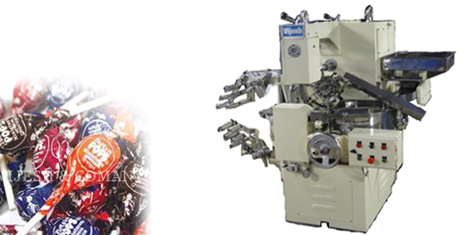

   Lollipop Double Twist Wrapping Machine

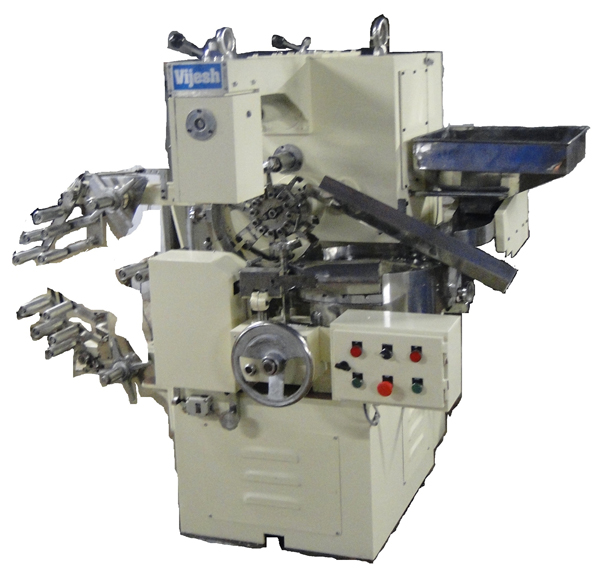

Click to enlarge

About Machine


This machine is used for packaging Ball Lollipops in Double Twist style. The lolipop may be stamped or molded with or without center filling (Pasty or firm center or up to about 15%).


The machine uses all commercial packaging materials, outer wrapper such as cellophane and P.V.C, inner wrapper such as waxed paper and paper foil. The machine is fully automatic including No-Paper mechanism.


The Lolipops are charged in to the S.S. Hopper from where it is released on to the rotary format by an automatically controlled vibrator. The paper flows from the paper feed station, cut to appropriate length & the Lolipops are lifted along with folded wrapper in to the twisting turret. The Lolipops are held in position by the rubber gripper and the twisting operation is performed mechanically by twisting fingers on both sides & then it is further collected from delivery chute.

Technical Specification

Capacity 225 to 250 Wrap/min.
Motor Rtaing 1.1 KW / 1.5 HP 3 Phase 1440 RPM with AC Drive
Dimensions of Packing Roll Size Outer 250 mm Width 70 to 100mm Inside Core 40 to 80mm
Weight (approx) 1200Kgs.
Dimensions (L x W x H) (approx) 1500 x 1800 x 1600mm
