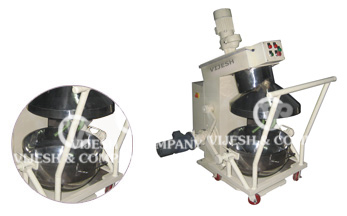

   FLAVOUR MIXER

Click to enlarge Click to view Vessel Lifter

About Machine


The high quality flavour mixer is used to mix different flavors, colors and acids into the mass of boiled sugar; it prevents evaporation and ensures to obtain fully homogeneous product.


Process

  • In Flavour mixing machine during the planetary movement, Mixing is carried out by two Teflon coated arms that operate on a sloping axis and cross each other.
  • In the mixer bowl the sugar mass is poured from the cooker. With the use of trolley the mixer is wheeled in the bowl.
  • The mixer bowl is automatically lifted to the same height as the arms when the machine is turned on. The instant process start to mix the colors, flavors and acids into the sugar mass. The process takes just about half minute to mix each batch.
  • The bowl automatically descends into the trolley on the completion of process. The sugar mass is ready for transfer to a kneading machine.

Technical Specification

Capacity Boiled sugar - 30 to 60 kg
Net Weight 350 kg Approximately
Mixing Time Approximate time Per Batch:  30 Seconds
Drive 2 @ 0.75kW
Dimensions Length: 1020 mm
Width: 770 mm
Height: 1160mm
