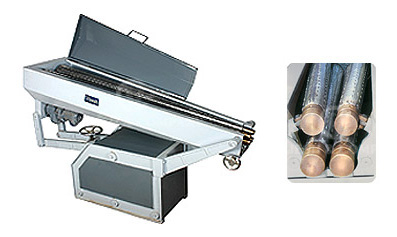

   BATCH ROLLER

Click to enlarge

About Machine


The cooked warm mass of Toffee/Candy is further processed to form a thin & continuous rope in Batch Roller. The Batch Roller mainly consists of forward- reverse rotating stainless steel taper rolls. The rotating rolls move the mass towards small end of rolls gradually and forms thin rope as per requirement. This rope then enters into Rope Sizer Unit for further processing.

Electric heater is attached along with Batch Roller machine to keep Toffee/Candy mass warm according to requirement.


Machine Specification

Capacity 60 Kgs. (approx)
Motor Rating 0.75 H.P. / 960 RPM. AC Motor
Gear Box Ratio 1:40
Weight (approx) 500 Kgs.
Dimensions (L x W x H) (approx) 2300 x 700 x 1300 mm.

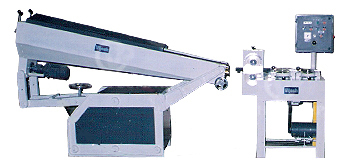

   BATCH ROLLER AND ROPE SIZER COMBINED UNIT
